Network Prerequisites – CMprint / PrinterKiosk / Cartadis’n Pay / Adyen UX410
1. Outgoing Network Flows
Production Environment
| Usage | Domain / IP | Port(s) | Protocol |
|---|---|---|---|
| PrinterKiosk – Production | api.printerkiosk.com | 443, 7181, 10000 | TCP |
| Cartadis’n Pay – Production | capture.cartadisnpay.com | 8443 | TCP |
| Dematerialized Ticket Service | archives.cartadis.com | 443 | TCP |
| Cartadis VPN (Support) | 51.38.189.192 | 1194 | UDP |
| Adyen UX410 Payment Terminal | *.adyen.com, *.adyenpayments.com | 443, 8443 | TCP |
| NTP (Adyen Terminal) | Public NTP Server (e.g. pool.ntp.org) | 123 | UDP |
| DNS (for all domain resolution) | DNS Server | 53 | UDP/TCP |
Pre-production Environment
| Usage | Domain / IP | Port(s) | Protocol |
|---|---|---|---|
| PrinterKiosk – Pre-production | dev.printerkiosk.com | 443, 7181, 10000 | TCP |
| Cartadis’n Pay – Pre-production | capture-dev.cartadisnpay.com | 8443 | TCP |
2. Local Incoming Network Flows (to CMprint)
| Usage | Port | Protocol | Authorized Source |
|---|---|---|---|
| SSH (Support) | 22 | TCP | Internal network or support IP |
| VNC (Support) | 5900 | TCP | Internal network or support IP |
3. Outgoing Connection to Printers / MFPs
(Only one printing protocol should be authorized depending on the configuration)
| Printing Protocol | Port | Protocol | Destination |
|---|---|---|---|
| IPP | 631 | TCP | MFP |
| IPPS (Secure IPP) | 443 | TCP | MFP |
| LPD / LPR | 515 | TCP | MFP |
| HP JetDirect / App Socket | 9100 | TCP | MFP |

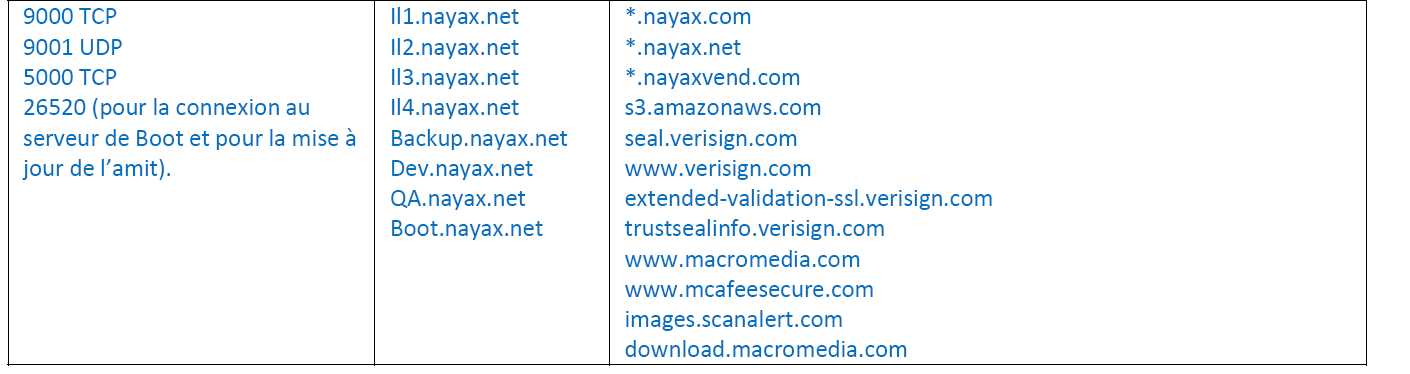

Nayax :
